Engineers, not just drafters
We are a structural engineering firm. Our team designs steel structures and checks connections in-house, so we catch design issues before they reach your shop floor, not after.
Structural steel detailing for US fabricators
Steel detailing by engineers. Answers on your time zone.
Techsteel has been modeling and detailing steel structures since 2001. Our engineers deliver accurate 3D models, erection and shop drawings and fabrication files, from Brazil, just one to two hours ahead of the US East Coast.
Send us your bid package. We reply with a quote within 1–2 business days.
2001in business since
1,500+projects delivered
200,000+tons detailed
22,000tons in our largest project
We work in
Tekla Structures
TSteel 3D
Why Techsteel
Why fabricators work with Techsteel
Same-day answers
Our office in Curitiba, Brazil, is just 1–2 hours ahead of New York and 4–5 hours ahead of Los Angeles. Your questions get answered during your workday, not overnight.
Built for heavy industrial work
Steel mills, mining plants, petrochemical facilities, distribution centers and multi-story buildings. We have detailed large projects shared among multiple fabricators, with full revision tracking.
Time zone
Your workday is our workday
Offshore detailing usually means sending a question at 4 PM and getting the answer tomorrow. With Techsteel, our day overlaps with all four US time zones, so RFIs and revisions move the same day.
Office hours: Mon–Fri, 8 AM – 6 PM Brasília time.
TechsteelCuritiba, Brazil
New YorkEastern
ChicagoCentral
DenverMountain
Los AngelesPacific
Deliverables
What you get
Everything your shop and your erector need, in the formats your machines read.
- 3D model in Tekla Structures
- Erection drawings (GA)
- Shop and assembly drawings
- Single-part drawings
- Anchor bolt plans and embed layouts
- Bills of materials and bolt lists
- CNC files (DSTV/NC1)
- DXF files for plate work
- KISS and IFC files
Projects
Selected projects
Industrial plants, buildings, bridges and conveyor galleries, detailed in 3D and coordinated with multiple fabricators.

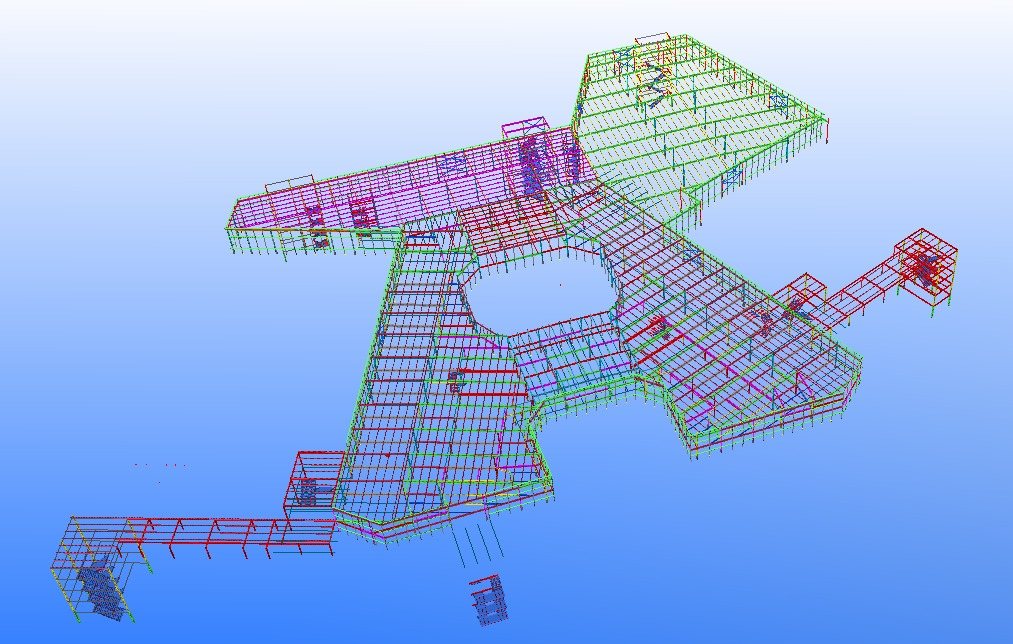

Multi-wing building around a central atrium
Full 3D model, erection and shop drawings.

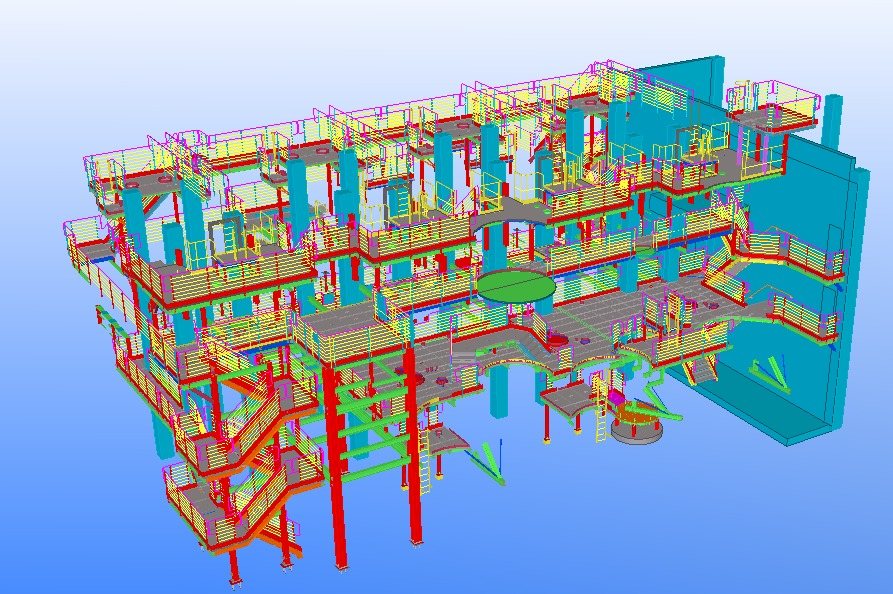

Process platforms, stairs and handrails
Multi-level access platforms detailed around existing equipment and concrete.

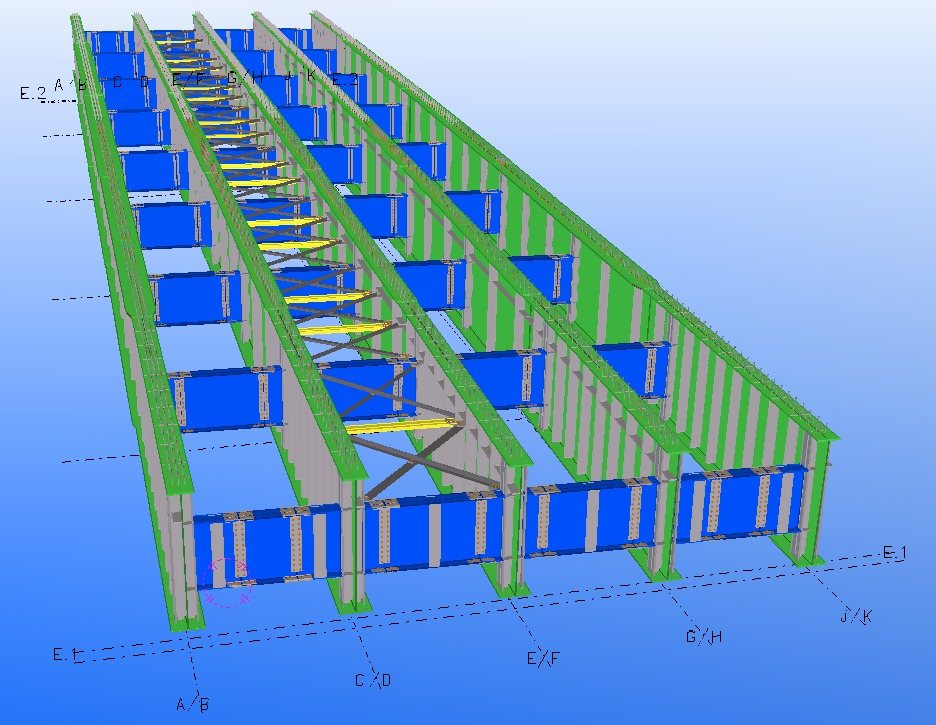

Welded plate girder bridge
Plate girders, stiffeners, cross frames and bracing.

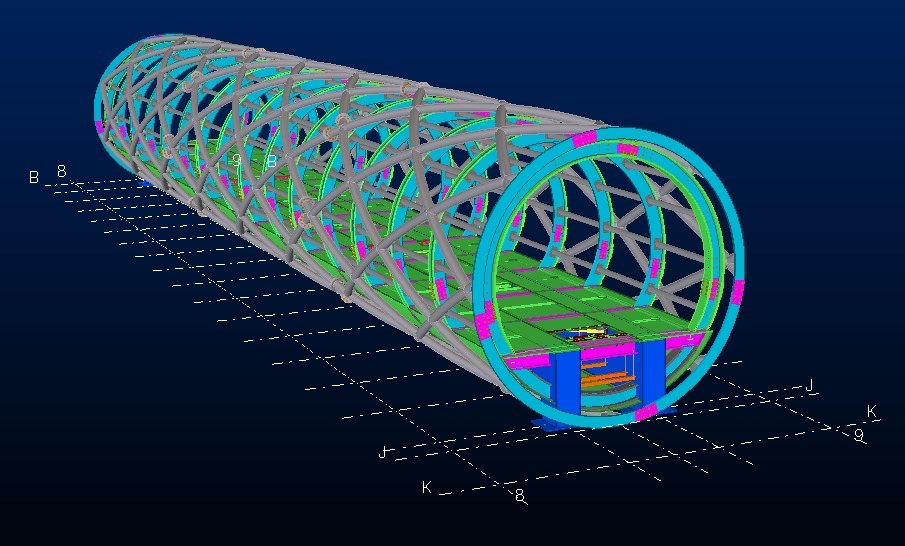

Tubular conveyor gallery
Ring frames, diagonal bracing and walkway deck.
How we work
One project lead. Every question tracked.
-
Send your bid package
Upload contract drawings and specs. We review the scope and reply with a fixed quote and schedule.
-
Kickoff and RFIs
A dedicated project lead is your single point of contact. Every question goes into a tracked RFI log, so nothing gets lost.
-
Model, check, approve
We model in 3D, check every drawing internally and submit for approval. Revisions are clouded and fully traceable.
-
Release for fabrication
You receive approved drawings plus CNC, DXF and report files, ready for your shop.
Try us on one job
Not ready to switch detailers? Start with a small package: a stair, a mezzanine, a single phase. Judge our drawings on a real job, with no long-term commitment.
“Testimonial”Name, Title, Company
Request a quote
Get a quote on your next project
No web forms. Email your bid package straight to our team: a Techsteel engineer reviews the drawings and replies within 1–2 business days.
- Fixed quote and schedule, per project or per phase
- Your files are confidential. We sign NDAs on request.
- Invoicing in US dollars
